end milling machine window machine aluminium window machine from China manufacturer

end milling machine window machine aluminium window machine

Payment Terms:	T/T,
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LXDB-250B

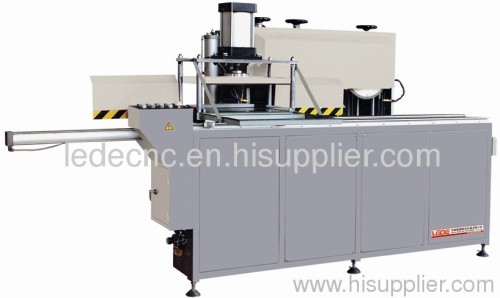

end milling machine for aluminium profile

window machine
Performance characteristic

1)Used for milling the aluminum mullion\ transom and reinforced mullion.
2)Large capacity milling .multi-pieces profile milling in one cycle

3)Universal milling blades can be adjusted in up/down ,left/ right directions and not made extra,which to fit for different processing requorement and ensure the efficient working.
4)Can work for the reinforce mullion in one cutting/milling cycle.
5)Large tools with high and stable milling speed for guarantee the working quality.

Technical parameter

Power supply: 380V 50HZ

Total power :8.8KW
Motor rotary speed:2800r/min
Operation air pressure:0.5-0.8MPa
Main spindle diameter: ø32mm
Milling cutter diameter:ø250mm
Worktable feed trave:0~1560mm

Worktable size: 530×320mm

Motor adjustable travel:0-85mm
Max processing hole size:40mm
Contour dimension:3240×970×1670mm(L×W×H)

Processing roughnessRa12.5µm

Weight: about750kg
